Description
Air Series, 6.4kW Sauna Heater Package

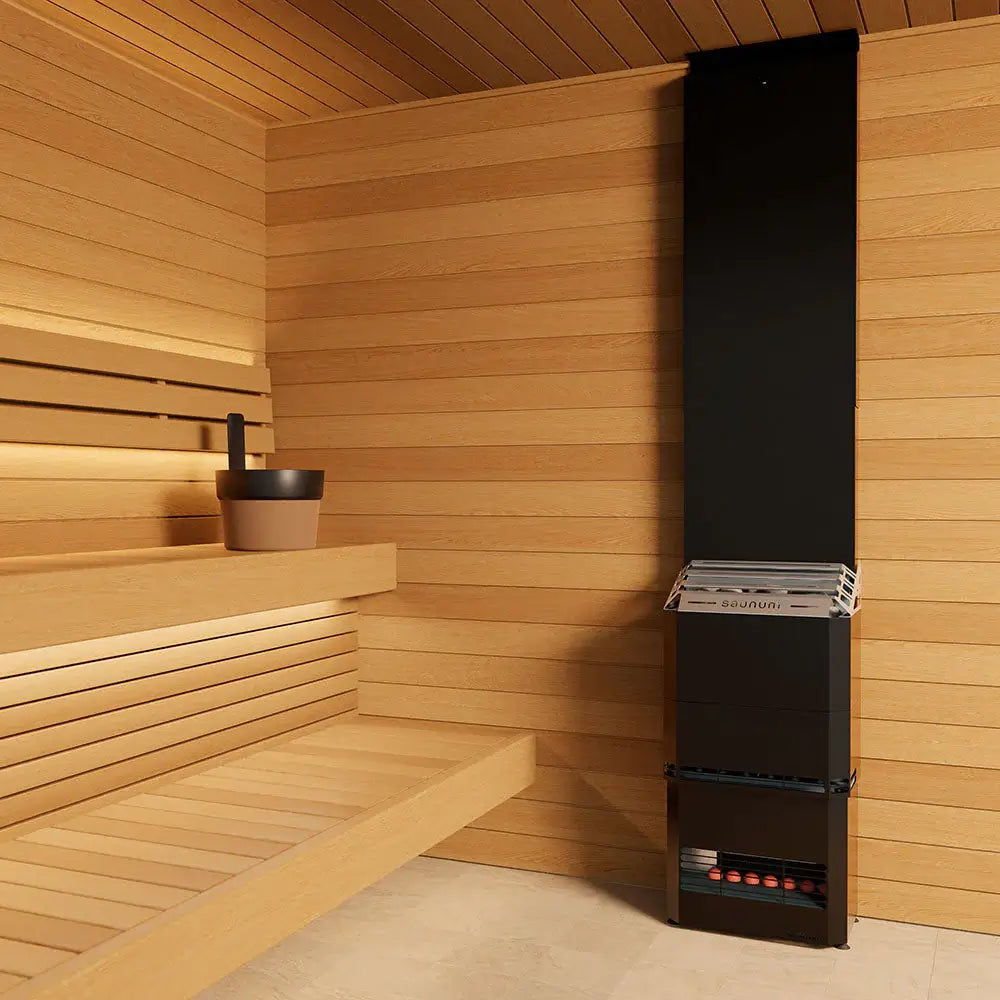

Introducing the Saunum Air 7 Sauna Heater w/ Climate Equalizer WiFi Package (black) – your passport to an immersive and connected sauna experience. This package features the state-of-the-art Saunum Air 7 black electric heater with climate equalizer paired with advanced WiFi connectivity, ensuring effortless control and convenience. With customizable temperature settings and intuitive scheduling options, you can tailor your sauna session to perfection, whether you’re at home or on the go.
Engineered for performance and longevity, the Saunum Air 7-CSB guarantees consistent and enveloping warmth, delivering a revitalizing retreat each time you step into your sauna. Its sleek stainless steel design not only enhances the aesthetics of your space but also reflects the durability and quality synonymous with Saunum products. Elevate your sauna experience with the Saunum Air 7-CSB WiFi Package – where luxury meets innovation.
Features
- Air Mixing Technology – Saunum patented air blending system mixes cold oxygen-rich air from the floor with hot oxygen-poor air off the ceiling to solve the discomfort so many associate with sauna. Whether you like it extremely hot, or just warm, Saunum delivers both in a way that heat and oxygen is felt head to toe.
- European Design – With elegant black steel finish, Saunum combines Scandinavian design and quality materials. Select the the simple elegance of the Nordic black steel body, or open stainless steel basket for a glowing organic aesthetic.
- Massive Stone Capacity – Stones are the heart of a Nordic sauna. Ample stones result in softer, more even heat, and can produce more luxurious steam. Large 154 pound stone capacity (required 5 boxes included)
- Himalayan Salt Reservoir – Saunum’s Himalayan salt tray is positioned within the air stream so that salt ions are propelled throughout the sauna to deliver health benefits more effectively.
- Wi-Fi Control – The available AirIQ Wi-Fi control unit allows you to activate a tailored sauna profile and have your custom sauna ready at the time that you specify on your mobile device.
- Dry your Sauna – Go ahead, toss water onto the rocks! Saunum is engineered for water-tossing, and when you’re done enjoying the steam, the patented fan system will conveniently help dry your sauna.
- UL Certification – Safety and reliability are priorities at Saunum, and each product is engineered to exceed strict UL standards.
- Available Aromatherapy – Add another sensory layer with Saunum’s optional aromatherapy system, which infuses aroma into the steam to further transform your experience.
- For Sauna rooms from 177 to 247 cu. ft.
AirIQ WiFi
Easily control the Saunum heater and climate device with just a few taps on the screen.
- For use with Saunum electric heaters up to 12 kW (Over 12 kW requires a separate contactor box.)
- Temperature selection ranges from 104 °F – 194°F (40°C – 90°C).
- Allows you to set the operating time of the heater: up to 1 hour in a private sauna, up to 6 hours in a public sauna.
- Allows you to select up to 3 Preset Sauna settings: (selectable temperature, time, climate device speed)
-
Classic Nordic Steam Sauna
- for temperatures from 140°F – 194°F (60°C – 90°C). Valve of the Climate Device open to 25% with speed level 1.
-
Humid Steam-rich Sauna
- for temperatures from 113°F – 140°F (45°C – 60°C). Valve of the Climate Device open to 100% with speed level 2 or 3.
-
Mild, Relaxing Sauna
- for temperatures from 104 °F – 131 °F (40°C – 55°C). Valve of the Climate Device open to 25% with speed level 1.
- AirIQ WiFi allows for sauna session scheduling for a specific day, time, and sauna type for the week.
- Built-in Wi-Fi interface for Saunum mobile app available on AppStore and Google Play.
- Notifications will be conveniently displayed directly onto your mobile device via the Saunum mobile app.
- Sauna is Ready
- Heating Status
- Door is Open
- Overheating protection applied.
- Multi-Language menu includes English, German, Estonian, Finnish, Russian, Swedish, and Slovenian.
- Outside Sauna room installation
- Screen lock
- Child Safety Lock
- Temperature Sensor
- Door Sensor
Stones
- High-Quality Olivine diabase raw stone
- Rounded, Pre-washed & ready to use
- Durable with high-heat capacity
- Stones range from 2″ to 4″ (5-10 cm)

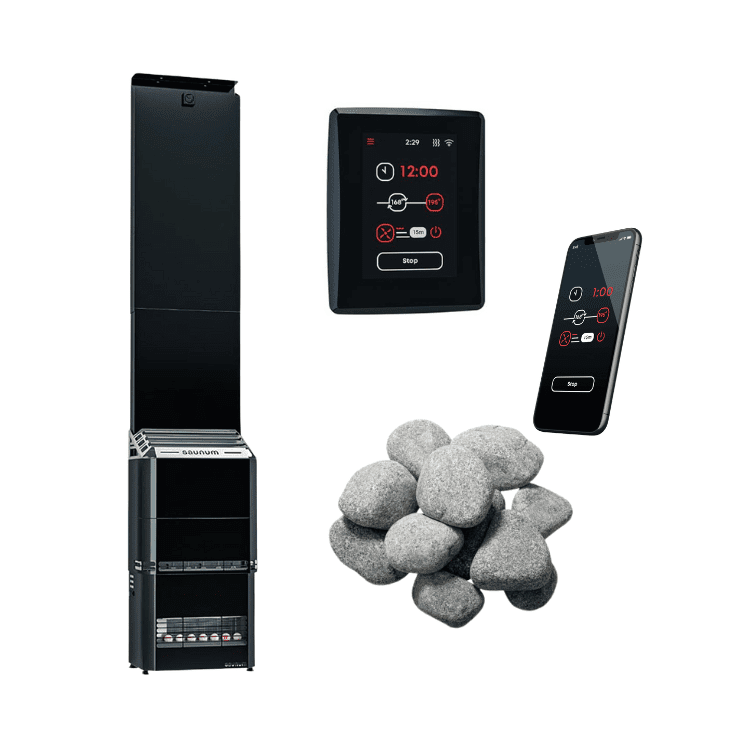

Package Contents
Saunum Air 7
- Nordic Black Metal Stone Basket
- Heat Equalizing Module
- Telescopic Hot Air Intake
- Heating Element Air Tunnels (3)
- Himalayan Salt Spheres (7)
- Hot Air Intake Cap
- Stainless Steel Protective Grille
- Heating Element Electrical Cable, 5′ (152.4 cm)
- Heat Equalizer Electrical Cable, 5′ (152.4 cm)
- Room Temperature Sensor & Cable, 9.5′ (289.56 cm)
- Door Sensor & Cable Assembly, 9.83′ (299.62 cm)
- IQAir Display Panel Cable, 16′ (487.68 cm)
- Quick Install Guide
- Installation & Operation Manual
- Limited Warranty
- Manual
- Limited Warranty
Saunum AirIQ WiFi
- Soft-Touch Display Panel (Wi-Fi App-Based Updates & Operation)
- Wall Mounting Plate & Fasteners
- Power Unit
- Door Sensor Magnet
- Installation & Operation Manual
- Limited Warranty
Stones
- 5 boxes of 33 lb box of 2″ – 4″ (5-10 cm) sauna stones
Specifications
| Heat Equalizing System | |
|---|---|
| Model | Air 7 |
| Certification/Global Safety Rating | UL (Underwriters Laboratories) |
| Heat/Steam Equalizer Module | 3-Speeds, Whisper-Quiet Operation |
| Ceiling Hot Air Intake | 17.72″ x 4″ ( 450.09 x 101.6 mm) |
| Cool Air Intake Type | Adjustable Valve, Side-Mounted, 12″ (304.8 mm) Off Floor |
| Cool Air Intake Size | 2″ x 2.75″ (50.8 x 69.85 mm) |
| Blended Air Output | 4.31″ x 14.13″ (109.47 x 358.90 mm) |
| Himalayan Salt & Aroma Tray Type | Removable, Slotted |
| Himalayan Salt & Aroma Tray Size | 16.5″ x 4.5″ (419.1 x 111.76 mm) |
| Sauna Heater System | |
|---|---|
| Model | Air 7 |
| Certification/Global Safety Rating | UL (Underwriters Laboratories) |
| Heater Body Style | Solid Steel – Nordic Black |
| Heating Elements | Incoloy (Stainless Steel) |
| Heating Element Protection (included) | Air Tunnels, Slotted Stainless Steel, Three |
| Room Size | 177 – 247 (5-7 Cubic Meters) |
| Wattage Rating | 6400 |
| Operating Voltage | 240 VAC |
| Phase | Single |
| Amperage | 26.67 |
| Weight | 115 lbs (52 kg) |
| Shipping Weight with Stones | 315 lbs (143 kg) |
| Product Depth | 12.41″ (315.3 mm) |
| Product Width | 18.31″ (465 mm) |
| Product Height (including telescopic air intake) | 71.95 – 94.49″ (1827.53-2400.05 mm) |
| Minimum Ceiling Height | 71.95″ (1827.53 mm) |
| Stone Capacity | 132 – 154 lbs (60-70 kg) |
| Stone Size (sold separately) | 2″ – 4″ (5-10 cm) |
| Circuit Breaker | 40 Amp |
| Wire Size to Power Unit | (2) #8 + N + G |
| Wire Size – Power Unit to Elements (Included) | 7-Conductor Cable, #14AWG , 90-Degree C, 5′ (152.4 cm) |
| Wire Size – Power Unit to Heat Equalizer (Included) | 5-Conductor Cable, #18AWG, 90-Degree C, 5′ (152.4 cm) |
| Room Temperature Sensor | Pre-Mounted with Integrated Cable (150- Degree C), 9.5′ (289.56 cm) |
| Display Panel | |
|---|---|
| Model | AirIQ Wi-Fi |
| Certification/Global Safety Rating | UL (Underwriters Laboratories) |
| Type | Digital, Soft-Touch |
| Response | Tactile with Haptic Feedback Technology |
| Language Selection | 16-Languages |
| Wi-Fi Capability | Wi-Fi, App-Based Updates & Operation |
| Notifications | Sauna is Ready, Heater Status, Open Door, and Overheating Protection |
| Safety Features | Admin, Screen Lock, Door Sensor, and Overheat Protection |
| Color | Nordic Black |
| Heat Equalizing Control | 3-Speed Adjustability |
| Depth | .8″ (20.32 mm) |
| Width | 3.3″ (83.82 mm) |
| Height | 4.1″ (104.14 mm) |
| IP Rating | IP20 |
| Minimum Temperature Setting | 104-Degrees Fahrenheit (40-Celcius) |
| Maximum Temperature Setting | 194-Degrees Fahrenheit (90-Celcius) |
| Duration Timer | 1 – 6 Hours |
| Display Panel Cable (included with heater) | 4-Conductor Cable (150-Degree C), 20AWG, 15′ (475.2 cm) |
| Door Sensor & Cable Assembly (included with heater) | 2-Conductor Cable (150-Degree C), 20AWG, 9.83′ (299.62 cm) |
| Door Sensor Probe | 1″ Long and .24″ Diameter (25 x 6 mm) |
| Operating Temperature Range | -4 – 145-Degrees Fahrenheit (-20 – 62 Celsius) |
| Programmability | Weekly Scheduling with Three Programmable Sessions |
| Temperature Settings | Fahrenheit or Celsius |
| Region Settings | North American and European Versions |
| Room Temperature Sensor (included with heater) | Pre-Mounted with Integrated Cable (150- Degree C), 9.5′ (289.56 cm) |
| Model | Sauna Stones |
|---|---|
| Stone weight per bag | 33 lbs. |
| Stone dimensions | 2″ – 4″ (5-10 cm) |
| Construction material | Granite |
