Description

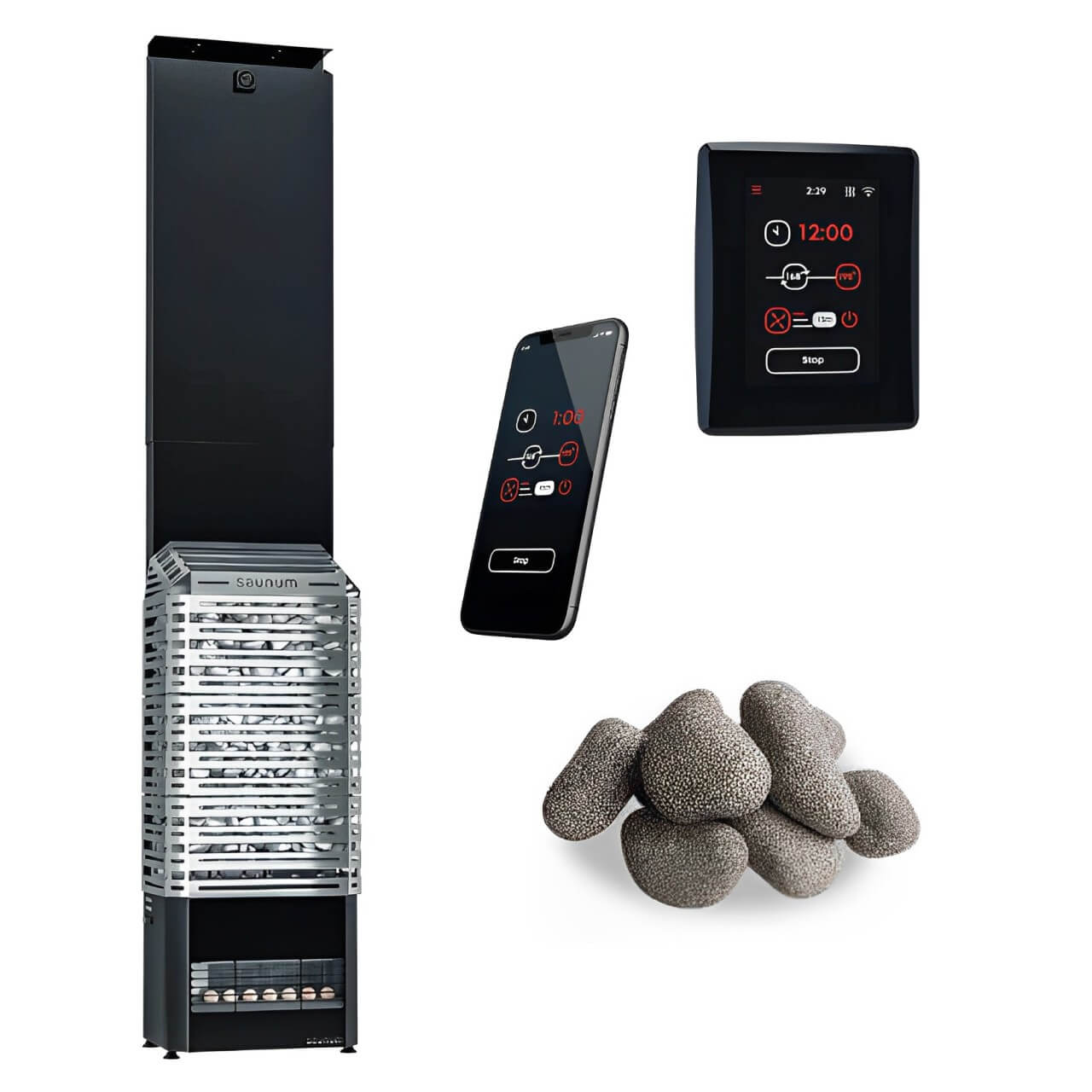

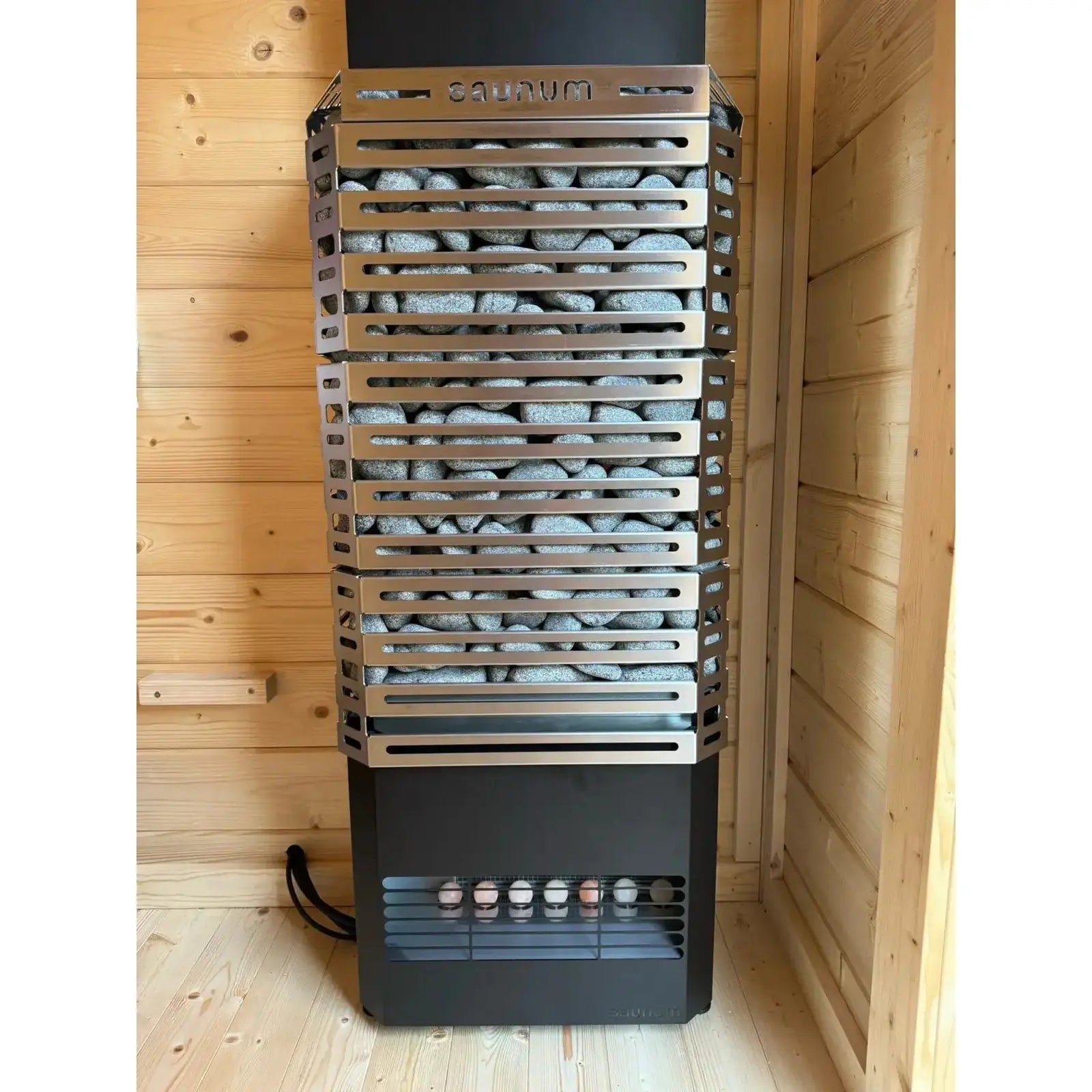

Air Series, 4.8kW Sauna Heater Package
Introducing the Saunum Air 5 Stainless Steel WiFi Package – your gateway to a seamlessly connected and indulgent sauna experience. This package combines the innovative Saunum Air 5 Stainless Steel electric heater with advanced WiFi connectivity, allowing you to control your sauna environment from anywhere with ease. Enjoy personalized relaxation with adjustable temperature settings and convenient scheduling options, all at your fingertips.
Crafted with precision and reliability in mind, the Saunum Air 5 Stainless Steel delivers consistent and enveloping warmth, ensuring a rejuvenating sauna session every time. The sleek stainless steel design adds a touch of elegance to your sauna space, enhancing both form and function. Elevate your sauna experience with the Saunum Air 5 Stainless Steel WiFi Package – where comfort meets connectivity.
Features
- Air Mixing Technology – Saunum patented air blending system mixes cold oxygen-rich air from the floor with hot oxygen-poor air off the ceiling to solve the discomfort so many associate with sauna. Whether you like it extremely hot, or just warm, Saunum delivers both in a way that heat and oxygen are felt head to toe.
- European Design – With an elegant black steel finish, Saunum combines Scandinavian design and quality materials.
-
Massive Stone Capacity – Stones are the heart of a Nordic sauna. Ample stones result in softer, more even heat, and can produce more luxurious steam. Large 154-pound stone capacity (required 5 boxes included)
- Please note that each natural stone is unique in shape and size. We recommend purchasing an additional box of sauna stones to allow you to choose the highest quality of stone for fit, form, and function (Additional freight charges will apply).
- Himalayan Salt Reservoir – Saunum’s Himalayan salt tray is positioned within the air stream so that salt ions are propelled throughout the sauna to deliver health benefits more effectively.
- Wi-Fi Control Option – The available AirIQ Wi-Fi control unit allows you to activate a tailored sauna profile and have your custom sauna ready at the time that you specify on your mobile device.
- Dry your Sauna – Go ahead, toss water onto the rocks! Saunum is engineered for water-tossing, and when you’re done enjoying the steam, the patented fan system will conveniently help dry your sauna.
- UL Certification – Safety and reliability are priorities at Saunum, and each product is engineered to exceed strict UL standards.
- Available Aromatherapy – Add another sensory layer with Saunum’s optional aromatherapy system, which infuses aroma into the steam to further transform your experience.
- For sauna rooms from 106 to 212 cu. ft.
AirIQ WiFi
Easily control the Saunum heater and climate device with just a few taps on the screen.
- For use with Saunum electric heaters up to 12 kW (Over 12 kW requires a separate contactor box.)
- Temperature selection ranges from 104 °F – 194°F (40°C – 90°C).
- Allows you to set the operating time of the heater: up to 1 hour in a private sauna, and up to 6 hours in a public sauna.
- Allows you to select up to 3 Preset Sauna settings: (selectable temperature, time, climate device speed)
-
Classic Nordic Steam Sauna
- for temperatures from 140°F – 194°F (60°C – 90°C). Valve of the Climate Device open to 25% with speed level 1.
-
Humid Steam-rich Sauna
- for temperatures from 113°F – 140°F (45°C – 60°C). The valve of the Climate Device opens to 100% with speed level 2 or 3.
-
Mild, Relaxing Sauna
- for temperatures from 104 °F – 131 °F (40°C – 55°C). Valve of the Climate Device open to 25% with speed level 1.
- AirIQ WiFi allows for sauna session scheduling for a specific day, time, and sauna type for the week.
- Built-in Wi-Fi interface for Saunum mobile app available on AppStore and Google Play.
- Notifications will be conveniently displayed directly on your mobile device via the Saunum mobile app.
- Sauna is Ready
- Heating Status
- Door is Open
- Overheating protection applied.
- Multi-Language menu includes English, German, Estonian, Finnish, Russian, Swedish, and Slovenian.
- Outside Sauna room installation
- Screen lock
- Child Safety Lock
- Temperature Sensor
- Door Sensor
Stones
- High-quality Olivine diabase raw stone
- Rounded, Pre-washed & ready to use
- Durable with high-heat capacity
- Stones range from 2″ to 4″ (5-10 cm)
Package Contents
Saunum Air50
- Stainless Steel Stone Basket
- Heat Equalizing Module
- Telescopic Hot Air Intake
- Heating Element Air Tunnels (3)
- Himalayan Salt Spheres (7)
- Hot Air Intake Cap
- Stainless Steel Protective Grille
- Heating Element Electrical Cable, 5′ (152.4 cm)
- Heat Equalizer Electrical Cable, 5′ (152.4 cm)
- Room Temperature Sensor & Cable, 9.5′ (289.56 cm)
- Door Sensor & Cable Assembly, 9.83′ (299.62 cm)
- IQAir Display Panel Cable, 16′ (487.68 cm)
- Quick Install Guide
- Installation & Operation Manual
- Limited Warranty
Saunum AirIQ WiFi
- Soft-Touch Display Panel (Wi-Fi Updates, No App-Based Operation)
- Wall Mounting Plate & Fasteners
- Power Unit
- Door Sensor Magnet
- Installation & Operation Manual
- Limited Warranty
Stones
- 5 boxes of 33 lb box of 2″ – 4″ (5-10 cm) sauna stones
Specifications
| Heat Equalizing System | |
|---|---|
| Model | Air 50 |
| Certification/Global Safety Rating | UL (Underwriters Laboratories) |
| Heat/Steam Equalizer Module | 3-Speeds, Whisper-Quiet Operation |
| Ceiling Hot Air Intake | 17.72″ x 4″ ( 450.09 x 101.6 mm) |
| Cool Air Intake Type | Adjustable Valve, Side-Mounted, 12″ (304.8 mm) Off Floor |
| Cool Air Intake Size | 2″ x 2.75″ (50.8 x 69.85 mm) |
| Blended Air Output | 4.31″ x 14.13″ (109.47 x 358.90 mm) |
| Himalayan Salt & Aroma Tray Type | 16.5″ x 4.5″ (419.1 x 111.76 mm) |
| Himalayan Salt & Aroma Tray Size | 16.5″ x 4.5″ (419.1 x 111.76 mm) |
| Sauna Heater System | |
|---|---|
| Model | Air 5 |
| Certification/Global Safety Rating | UL (Underwriters Laboratories) |
| Heater Body Style | Stainless Steel |
| Heating Elements | Incoloy (Stainless Steel) |
| Heating Element Protection (included) | Air Tunnels, Slotted Stainless Steel, Three |
| Room Size | 106 – 212 (3-5 Cubic Meters) |
| Wattage Rating | 4800 |
| Operating Voltage | 240 VAC |
| Phase | Single |
| Amperage | 20 |
| Weight | 106 lbs (48 kg) |
| Shipping Weight with Stones | 300 lbs (136 kg) |
| Product Depth | 12.41″ (315.3 mm) |
| Product Width | 18.31″ (465 mm) |
| Product Height (including telescopic air intake) | 71.48 – 94.49″ (1815.6-2400.05 mm) |
| Minimum Ceiling Height | 71.48″ (1815.6 mm) |
| Stone Capacity | 132 – 154 lbs (60-70 kg) |
| Stone Size (sold separately) | 2″ – 4″ (5-10 cm) |
| Circuit Breaker | 30 Amp |
| Wire Size to Power Unit | (2) #10 + N + G |
| Wire Size – Power Unit to Elements (Included) | 7-Conductor Cable, #14AWG , 90-Degree C, 5′ (152.4 cm) |
| Wire Size – Power Unit to Heat Equalizer (Included) | 5-Conductor Cable, #18AWG, 90-Degree C, 5′ (152.4 cm) |
| Room Temperature Sensor | Pre-Mounted with Integrated Cable (150- Degree C), 9.5′ (289.56 cm) |
| Display Panel | |
|---|---|
| Model | AirIQ Wi-Fi |
| Certification/Global Safety Rating | UL (Underwriters Laboratories) |
| Type | Digital, Soft-Touch |
| Response | Tactile with Haptic Feedback Technology |
| Language Selection | 16-Languages |
| Wi-Fi Capability | Wi-Fi, App-Based Updates & Operation |
| Notifications | Sauna is Ready, Heater Status, Open Door, and Overheating Protection |
| Safety Features | Admin, Screen Lock, Door Sensor, and Overheat Protection |
| Color | Nordic Black |
| Heat Equalizing Control | 3-Speed Adjustability |
| Depth | .8″ (20.32 mm) |
| Width | 3.3″ (83.82 mm) |
| Height | 4.1″ (104.14 mm) |
| IP Rating | IP20 |
| Minimum Temperature Setting | 104-Degrees Fahrenheit (40-Celcius) |
| Maximum Temperature Setting | 194-Degrees Fahrenheit (90-Celcius) |
| Duration Timer | 1 – 6 Hours |
| Display Panel Cable (included with heater) | 4-Conductor Cable (150-Degree C), 20AWG, 15′ (475.2 cm) |
| Door Sensor & Cable Assembly (included with heater) | 2-Conductor Cable (150-Degree C), 20AWG, 9.83′ (299.62 cm) |
| Door Sensor Probe | 1″ Long and .24″ Diameter (25 x 6 mm) |
| Operating Temperature Range | -4 – 145-Degrees Fahrenheit (-20 – 62 Celsius) |
| Programmability | Weekly Scheduling with Three Programmable Sessions |
| Temperature Settings | Fahrenheit or Celsius |
| Region Settings | North American and European Versions |
| Room Temperature Sensor (included with heater) | Pre-Mounted with Integrated Cable (150- Degree C), 9.5′ (289.56 cm) |
| Model | Sauna Stones |
|---|---|
| Stone weight per bag | 33 lbs. |
| Stone dimensions | 2″ – 4″ (5-10 cm) |
| Construction material |
Granite |
